Introduction
When it comes to metal casting, molds are an essential component of the process. Whether you’re a DIY hobbyist, an apprentice, or an engineering student, understanding the different types of molds, materials, and casting techniques can significantly improve your work. This ultimate guide will explore the various aspects of molds for metal casting, offering detailed insights into their use, benefits, and challenges. By the end of this guide, you’ll have a solid understanding of how molds function in the casting process and how to choose the right mold for your specific project.
What Is Metal Casting?

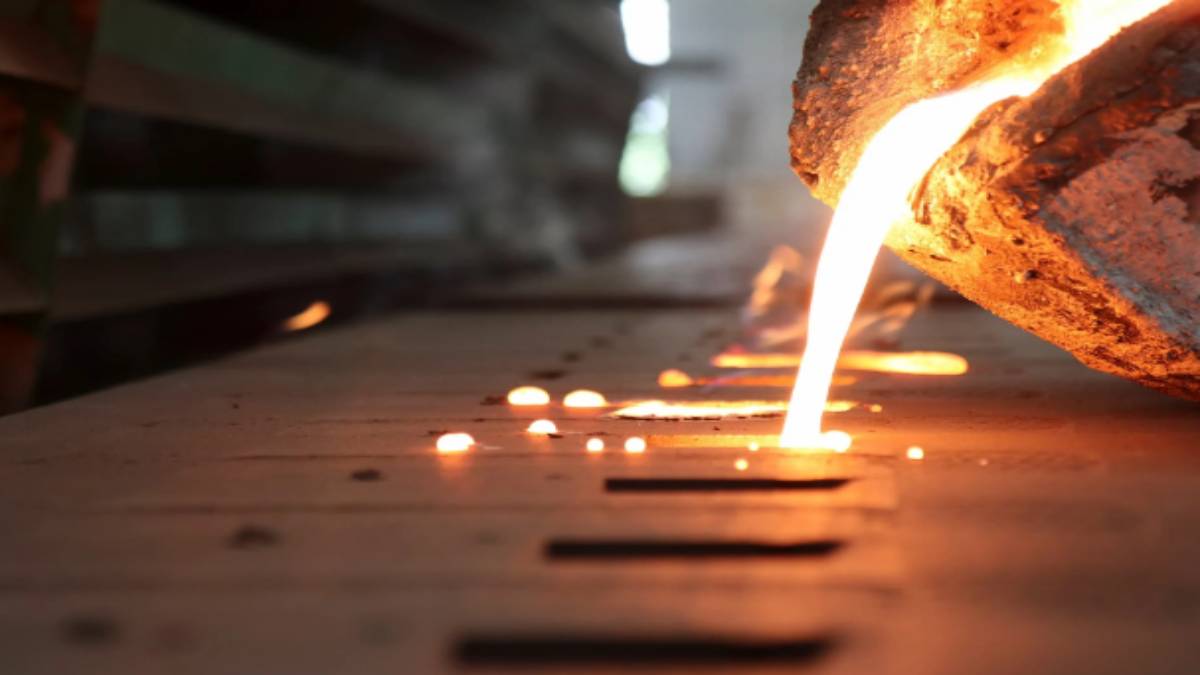

Before diving into the specifics of molds, it’s essential to understand what metal casting is. Metal casting is the process of pouring molten metal into a mold to create a solid object once it cools and solidifies. This is one of the oldest manufacturing techniques, dating back thousands of years, and remains crucial in industries ranging from automotive to aerospace.
Molds play a critical role in this process as they dictate the shape and dimensions of the final product. Without the right mold, the casting process can be inefficient, costly, and lead to defects in the finished product.
Types of Molds for Metal Casting
There are several types of molds used in metal casting, each suitable for different applications and materials. Below, we’ll explore the most common types and their uses.
1. Sand Casting Molds
Sand casting is one of the most common and versatile methods used in metal casting. It involves creating a mold from a mixture of sand, clay, and water. The molten metal is poured into the mold to form the desired shape.
-
Advantages: Low cost, flexibility in mold design, suitable for large-scale production.
-
Disadvantages: Rough surface finish, limited detail in complex designs.
Applications: Sand casting is commonly used in the automotive, aerospace, and industrial sectors to create parts such as engine blocks, machine housings, and valves.
2. Permanent Mold Casting
In permanent mold casting, molds are made from durable materials such as steel or cast iron. Unlike sand molds, which are destroyed after each casting, permanent molds can be reused many times.
-
Advantages: Better surface finish, higher dimensional accuracy, and faster production rates.
-
Disadvantages: Higher initial cost, limited to metals with lower melting points (like aluminum).
Applications: This method is often used for small to medium-sized parts in the automotive and consumer goods industries.
3. Investment Casting (Lost Wax Process)
Investment casting, also known as the lost wax process, involves creating a mold around a wax pattern, which is then melted away once the mold is formed. This type of casting is highly accurate and is used for producing intricate designs.
-
Advantages: High precision, fine details, smooth surface finish.
-
Disadvantages: Expensive, time-consuming, and requires skilled labor.
Applications: Investment casting is widely used for jewelry making, turbine blades, and aerospace components.
4. Shell Molding
Shell molding is a variation of investment casting. It involves creating a thin shell mold by applying a layer of fine sand or ceramic to the wax pattern. The mold is then heated to remove the wax and harden the shell.
-
Advantages: Excellent surface finish and high accuracy.
-
Disadvantages: Higher production costs, limited for smaller production runs.
Applications: Shell molding is typically used for casting parts that require high precision and excellent surface quality, such as in the aerospace and medical industries.
5. Die Casting
Die casting involves forcing molten metal into a steel mold under high pressure. The mold is typically made of two halves that open to reveal the finished part.
-
Advantages: High production speed, excellent surface finish, and consistent quality.
-
Disadvantages: High initial tooling costs, limited to low-melting-point metals.
Applications: Die casting is commonly used for producing parts in high-volume production, such as in the automotive, electronics, and household appliance industries.
6. Ceramic Molding
Ceramic molding is a casting process that uses a ceramic shell to form a mold. The process involves creating a wax model, coating it in ceramic material, and then heating it to remove the wax and harden the shell.
-
Advantages: Extremely high precision and fine detail.
-
Disadvantages: Expensive, labor-intensive, and not suitable for high-volume production.
Applications: Ceramic molding is frequently used in industries requiring highly detailed and precise parts, such as in turbine blades for jet engines and certain medical devices.
Materials Used for Molds in Metal Casting
The choice of material for a mold can significantly affect the casting process. Some common mold materials include:
1. Sand
As mentioned, sand is one of the most commonly used mold materials, particularly in sand casting. It’s readily available, inexpensive, and offers flexibility in mold design. However, sand molds can only be used for one casting and tend to produce a rougher finish.
2. Steel
Steel is often used for permanent molds in casting. It is durable and reusable, making it ideal for high-volume production. Steel molds can withstand high temperatures and provide excellent dimensional accuracy.
3. Ceramic
Ceramic molds are commonly used in investment casting processes. They provide high precision and are ideal for intricate designs and fine details.
4. Graphite
Graphite is used in some specialized casting processes, such as for casting metals with very high melting points, like titanium or certain alloys. Graphite can withstand extremely high temperatures and has excellent thermal conductivity.
5. Plaster
Plaster molds are often used in casting non-ferrous metals, such as aluminum and bronze. Plaster offers excellent surface finish and can be used for more intricate parts.
Choosing the Right Mold for Your Metal Casting Project
Selecting the right mold for your project depends on several factors, including the type of metal being used, the complexity of the design, production volume, and desired finish. Here are some key considerations:
1. Material of the Mold
The material of the mold will affect the heat retention, cooling time, and ease of removal of the casting. For example, steel molds are better suited for high-volume production but may be expensive for small batches. Sand molds are ideal for larger or more complex items but require more time to produce.
2. Desired Finish
If you require a smooth finish with high dimensional accuracy, methods like investment casting or die casting are ideal. On the other hand, if you’re okay with a rougher finish and a slower production time, sand casting may be the best option.
3. Production Volume
For high-volume production, die casting or permanent molds may be the best choice. These methods can be reused repeatedly, lowering the per-unit cost. For low-volume or prototype runs, methods like investment casting or sand casting might be more appropriate.
Conclusion
Understanding molds for metal casting is essential for anyone involved in the manufacturing or crafting process. Whether you are an engineering student, a DIY enthusiast, or an apprentice, this guide has covered the different types of molds, materials, and considerations for selecting the right mold for your project.
By learning about the advantages, disadvantages, and applications of each mold type, you are better equipped to make informed decisions and improve the quality of your castings. Keep in mind that the casting process is both an art and a science—choosing the right mold will make all the difference in achieving a successful result.
FAQ Section
1. What is the best mold for metal casting?
The best mold depends on the type of metal being cast and the complexity of the design. For simple designs, sand casting may be sufficient. For more intricate designs, investment casting or die casting may be better suited.
2. Can I reuse sand molds for casting?
No, sand molds are typically single-use molds. Once the metal has solidified, the sand mold is destroyed and cannot be reused.
3. How do I choose the right mold material?
Choosing the right material depends on factors like the type of metal, the complexity of the design, and the number of pieces to be produced. Steel is ideal for high-volume production, while ceramic is best for high precision.
4. Can I cast metals with high melting points using sand molds?
No, sand molds are not suitable for metals with very high melting points. For metals like titanium, graphite or ceramic molds are better options.
5. What is the difference between permanent mold casting and die casting?
Both processes involve reusable molds, but die casting is typically used for high-volume production of smaller parts, while permanent mold casting is often used for larger parts with medium complexity.
6. How can I improve the surface finish of my castings?
To improve the surface finish, you can use molds made of materials like steel or ceramic, or opt for casting processes like investment casting or die casting, which produce finer details and smoother surfaces.
